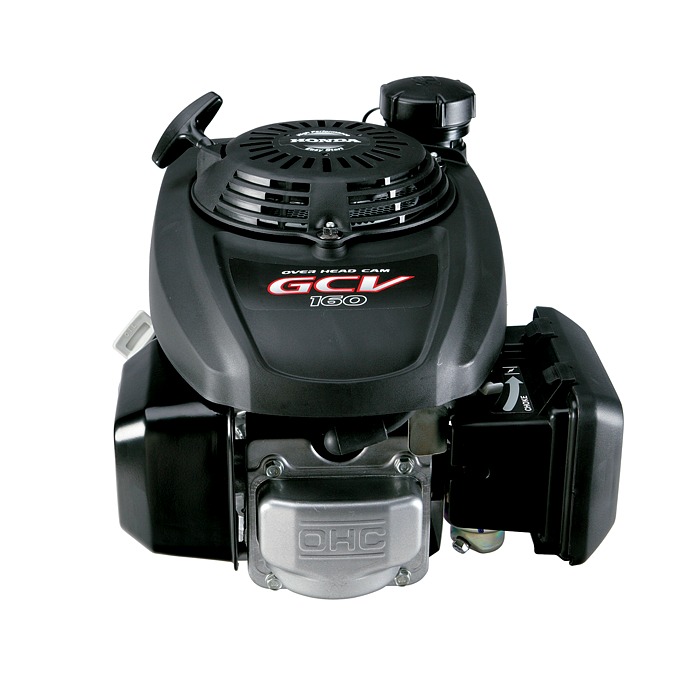

Honda GCV160 Engine

Description

Ideal for residential lawnmowers and pressure washers, the Honda GCV160 engine is sure to pack a punch no matter how it's used around the home. There is also a demand for the Honda GCV160 engine in the Agricultural industry, where it's used to power Ag Equipment around Australia.

Compact & Lightweight

The lightest engine in its class, the Honda GCV160 engine features the world's first general purpose engine internal timing belt, which provides quiet operation. It features a compact combustion chamber, overhead cam design, and uniblock construction to reduce fuel consumption. And a tough resin overhead cam results in durability and quietness - two elements that you, your family or your employees will thank you for.

Quiet, Simple, Performance

An internal timing belt provides quiet operation, and precision engineered and machined components result in low vibration. An Auto Choke System is available, and with easily accessible oil drain & fill and spark plug, not to mention a proven lifetime timing belt design, the Honda GCV160 engine is easy to use and maintain. And there's a Honda blade brake clutch assembly available for lawn mower applications, should you require it (optional extra).

2 Year Domestic Warranty

The use of high quality materials, fit, and finish, paired with a simple construction, reduces many potential maintenance needs that might be found on competing engines. But just in case, the Honda GCV160 engine is covered by a comprehensive Honda 2 Year Domestic Warranty (90 Day Commercial Warranty). And to further sweeten the deal, the Honda GCV160 engine is backed by Honda's network of over 400 authorised dealers country-wide, who are ready to help you out.

Specifications

MODEL GCV160
TYPE 4-stroke, overhead cam, single-cylinder, vertical shaft
BORE & STROKE 64 x 50 mm
DISPLACEMENT 160 cm3
COMPRESSION RATIO 8.5:1
NET POWER 3.3kW (4.4HP) at 3,600 rpm
CONTINUOUS RATED POWER 2.1 kW (2.8 HP) at 3000 rpm
MAXIMUM NET TORQUE 9.4 Nm (6.9 lbs ft) at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil Start
COOLING SYSTEM Forced-Air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 1.1 L/hr at 3000 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Forced Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 0.55l
FUEL TANK CAPACITY 0.93l
DIMENSIONS 366 x 331 x 360mm
DRY WEIGHT 9.8kg
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
