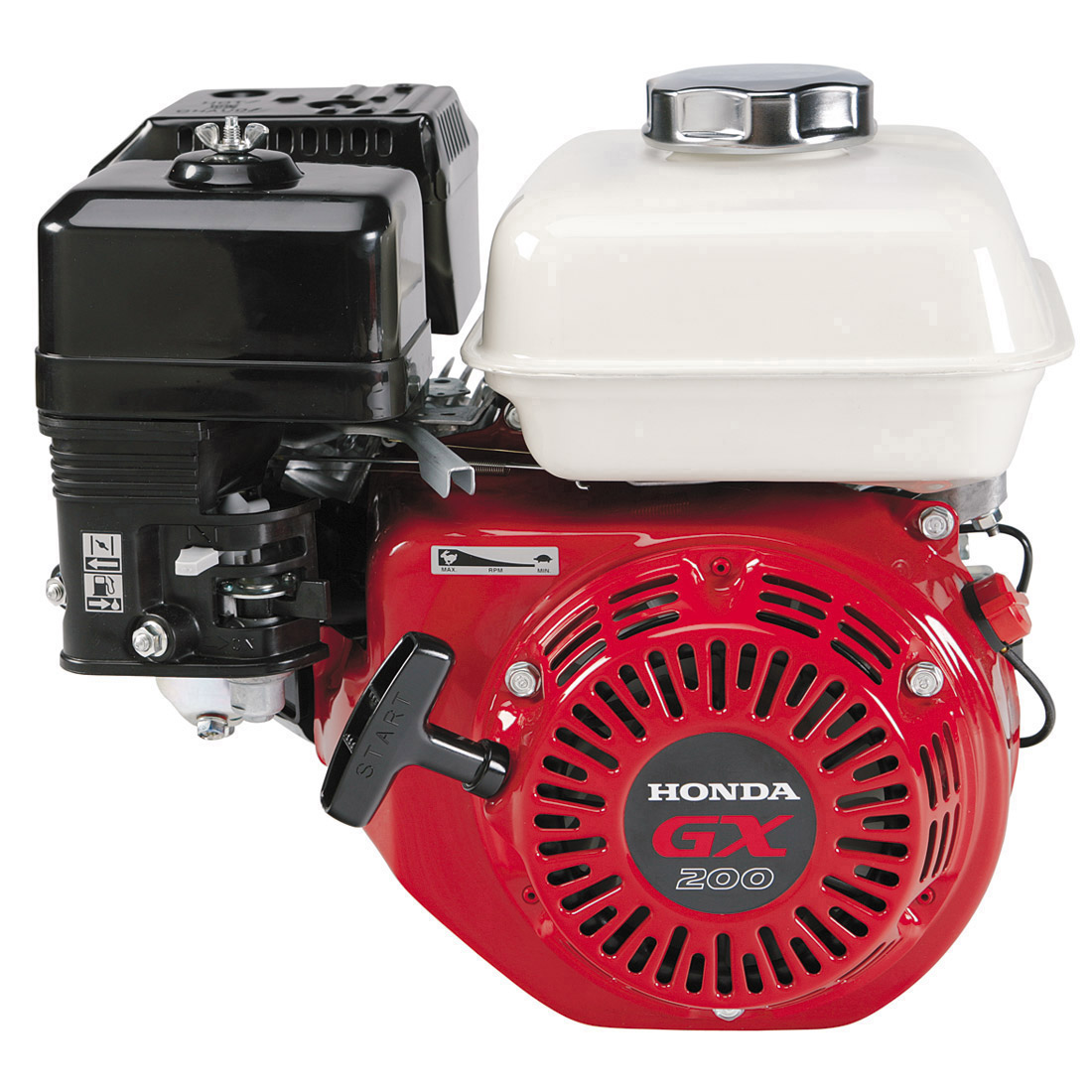

Honda GX200 Engine

Description

The Honda GX200 engine is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the Honda GX200 engine.

Fuel Efficient, High Output Operation

The Honda GX200's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it. And the Honda GX200 engine incorporates a high compression ratio for better fuel efficiency than its competitors.

Smooth Operator

The Honda GX200's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application. The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system. And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the Honda GX200's features go on and on.

3 Year Warranty

The Honda GX200 engine, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your Honda GX200 engine is built to last. And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.

Specifications

MODEL GX200
TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE 68 x 54 mm
DISPLACEMENT 196 cm3
COMPRESSION RATIO 8.5:1
NET POWER 4.1kW (5.5HP) at 3,600 rpm
CONTINUOUS RATED POWER 3.7kW (5.0HP) at 3,600 rpm
MAXIMUM NET TORQUE 12.4 Nm at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil (Electric Starter Optional)
COOLING SYSTEM Forced-Air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 1.7 L/h at 3,600 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 0.6l
FUEL TANK CAPACITY 3.1l
DIMENSIONS 313 x 376 x 346mm
DRY WEIGHT 16.2kg
OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
