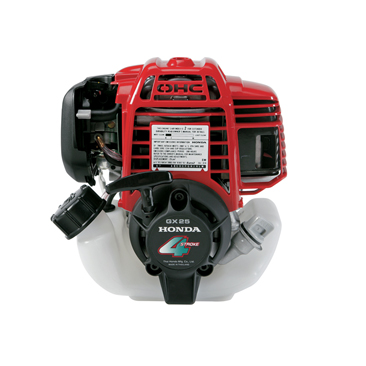

Honda GX25 Mini 4-Stroke Engine

Description

Perfect for powering Commercial Lawn & Garden Equipment, The ultra-lightweight Honda GX25 Mini 4-Stroke engine efficiently delivers the kind of efficient, clean, powerful, quiet performance that you’d expect from a larger engine – but in a very compact package. The Honda GX25 Mini 4-Stroke engine is also well-known for powering Tillers/Cultivators, Water Pumps, Agricultural Equipment and Construction/Industrial Equipment. When you see the Honda GX25 Mini 4-Stroke engine powering Honda-branded handheld equipment like brushcutters and blowers, you know you're getting a premium engine.

Advanced Technology

The world's lightest OHC engine, the Honda GX25 Mini 4-Stroke engine requires no fuel/oil mixing, and runs at approximately half the operating cost of comparable 2-stroke engines. A full 360° "any-side-up" operation means you can use and store the GX25 in any position, and take advantage of the exclusive rotary-slinger lubrication system. The carburetor is equipped with an accelerator pump for fast, easy acceleration, and an efficient port configuration and large diameter valves maximise power output.

Easy Starting

An exhaust decompression system and unique low inertia design means the Honda GX25 Mini 4-Stroke engine will start first time, every time. There's an easily accessible spark plug, and it's simple to drain and re-fill the oil, so maintenance is a piece of cake. High quality materials, fit, and finish ensure that your Honda GX25 Mini 4-Stroke engine can be relied upon whenever you need it.

3 Year Warranty

The Honda GX25 Mini 4-Stroke engine, like so many other Honda Engines, is covered by a comprehensive Domestic & Commercial 3 Year Warranty. Special designs for horizontal and vertical applications are also available, so whatever your application, the Honda GX25 Mini 4-Stroke engine will deliver. And you're backed up by over 400 authorised Honda dealers around Australia who are on call to support you if you need repair, maintenance or parts assistance.

Specifications

MODEL GX25
TYPE 4-stroke, overhead cam, single-cylinder, horizontal shaft
BORE & STROKE 35 x 26 mm (1.4 x 1.0 in)
DISPLACEMENT 25cm3 (1.5 cu in)
COMPRESSION RATIO 8.0:1
NET POWER 0.72kW (1.0HP) at 7,000 rpm
MAXIMUM NET TORQUE 1.0 Nm (0.74 lbs ft) at 5,000 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil Starter
COOLING SYSTEM Forced-air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 0.54 L/h at 7,000 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Oil mist
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 0.08l
FUEL TANK CAPACITY 0.55l
DIMENSIONS 192mm x 221mm x 230mm
DRY WEIGHT 2.78kg (w/o clutch)
OTHER SPECS Infinite Operating Angles
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
