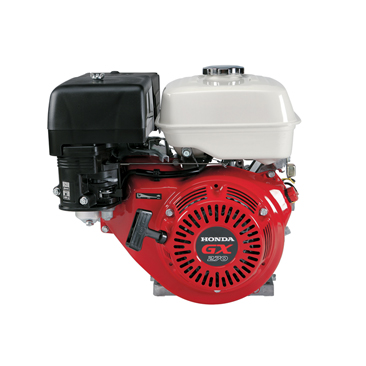

Honda GX270 Engine

Description

The Honda GX270 engine is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.Agricultural Equipment, Water Pumps, and even Go Karts, are powered by the Honda GX270 engine.

Fuel Efficient, High Output Operation

A digital CDI ignition system with variable timing and an increased compression ratio combines with the Honda GX270's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it. And the use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - an improved piston design reduces mechanical noise, with an overall reduction of engine noise by up to 5 dB.

The Whole Package

The Honda GX270's ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you, no matter what the application. With a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the Honda GX270's features go on and on.And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & Lamp Coils with Multiple Output Options.

3 Year Warranty

The Honda GX270 engine, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty. That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your Honda GX270 engine is built to last. And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & service requirements.

Specifications

MODEL GX270
TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE 77 x 58mm
DISPLACEMENT 270 cm3
COMPRESSION RATIO 8.2:1
NET POWER 6.0kW (8.0HP) at 3,600 rpm
CONTINUOUS RATED POWER 5.1kW (6.8HP) at 3,600 rpm
MAXIMUM NET TORQUE 17.7 Nm at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil (Electric Starter Optional)
COOLING SYSTEM Forced-Air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 2.5 L/h at 3,600 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 1.1l
FUEL TANK CAPACITY 5.3l
DIMENSIONS 380 x 430 x 410mm
DRY WEIGHT 25kg
OTHER OPTIONS 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
