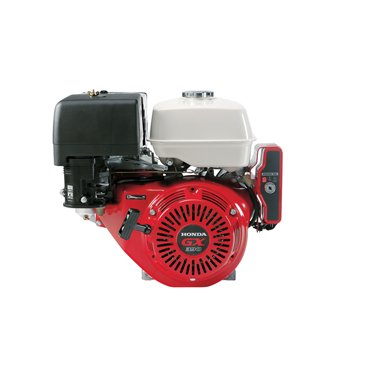

Honda GX340 Engine

Description

The Honda GX340 engine is used in all sorts of applications. From Pressure Washers and Construction/Industrial equipment, to Tillers/Cultivators, Generators and Commercial Lawn & Garden Equipment, it can be found working hard all over Australia.Due to its power, heavy-duty Forestry Equipment, Agricultural Equipment and Water Pumps are also powered by the gutsy Honda GX340 engine.

Fuel Efficient, High Output Operations

A digital CDI ignition system with variable timing and an increased compression ratio combines with the Honda GX340's Precision Camshaft design to offer precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer where and when you need it. The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine - an improved piston design reduces mechanical noise, with an overall reduction of engine noise by up to 5 dB.

Smooth Performance

The Honda GX340 engine offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy duty balancer shaft to deliver smooth performance. A large capacity, multi-chamber exhaust system and sophisticated air intake system also makes for an exceptionally quiet engine. And with a simple Throttle Control, large Fuel Tank and Automotive Type Fuel Cap, Dual Oil Drains and Fills, an easily accessible Spark Plug and Heavy Duty Recoil Starter, the Honda GX340's features go on and on.

3 Year Warranty

The Honda GX340 engine, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty. And for those who want a little bit more, available extras include Gear reduction options, Electric start option, Spark arrester and Charge & Lamp Coils with Multiple Output Options. And should there be any issues, a nationwide network of 400+ authorised Honda dealers are there to back you up with all your parts & service requirements.

Specifications

MODEL GX340
TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE 82 x 64 mm
DISPLACEMENT 337cm3
COMPRESSION RATIO 8.0:1
NET POWER 7.1kW (9.5HP) at 3,600 rpm
CONTINUOUS RATED POWER 5.8kW (7.8HP) at 3,600 rpm
MAXIMUM NET TORQUE 22.1 Nm at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil (Electric Starter Optional)
COOLING SYSTEM Forced-Air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 3.0 L/h at 3,600 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 1.1l
FUEL TANK CAPACITY 6.1l
DIMENSIONS 405 x 450 x 443mm
DRY WEIGHT 30kg
OTHER OPTIONS 2:1 Reduction
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
