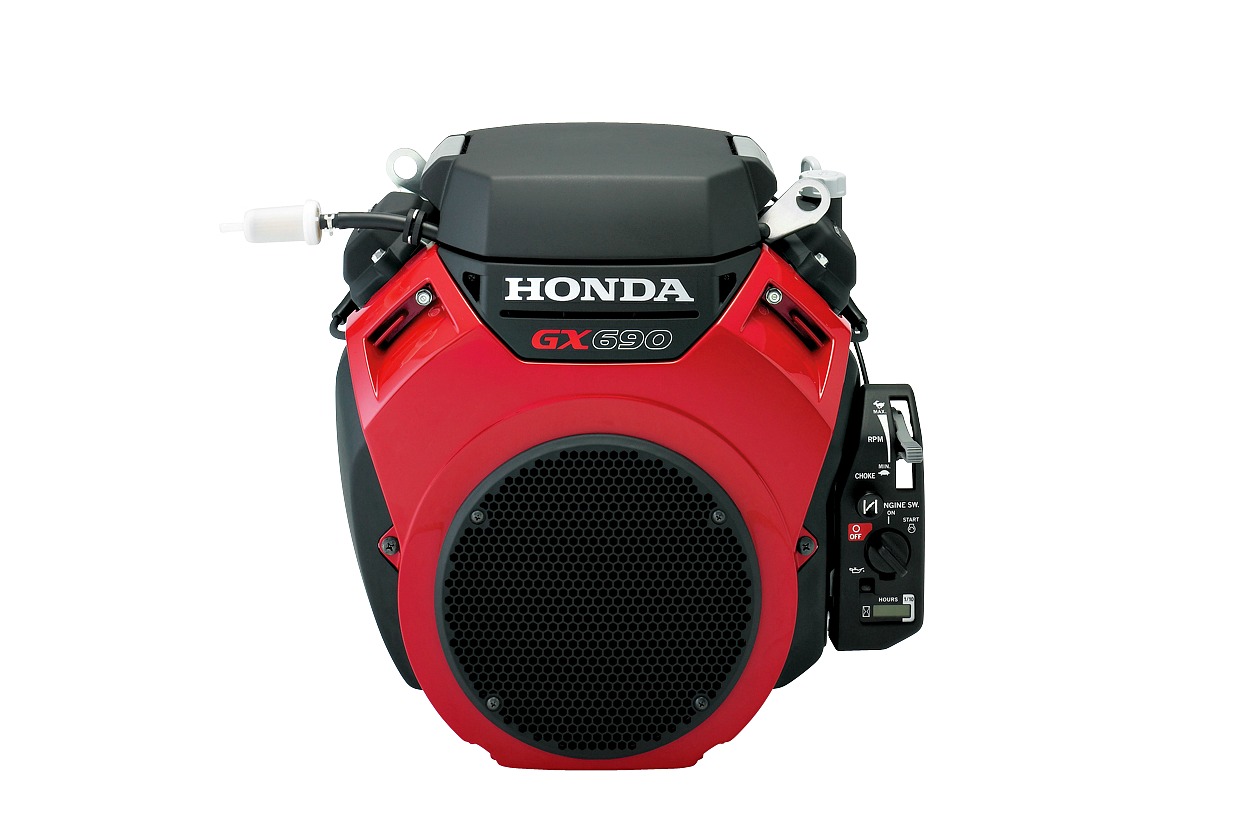

Honda GX690 V-Twin Engine

Description

Honda's V-Twin range of engines are the cream of the crop, powering Pressure Washers, Water Pumps and Commercial Lawn & Garden Equipment across Australia. The Honda GX690 V-Twin can also be found in Tillers/Cultivators and other Agricultural Equipment, Generators as well as in many different applications. And if it's something more demanding that you need power for, the Honda GX690 V-Twin engine is also used in the Forestry and Construction/Industrial industries.

Fuel Efficient Operation

The fuel economy of the Honda GX690 V-Twin engine is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment. It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving. A hemispherical combustion chamber delivers rapid combustion, and it features Pressure fed crankshaft bearings. Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.

Proven Reliability

The Honda GX690's high capacity pump facilitates consistent oil delivery, and a handy Oil Alert will keep you posted if you look like running dry. There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling. The result is a long-lasting, high-performing and reliable engine.

3 Year Warranty

Don't forget, all Honda V-Twin Engines are covered by a Honda 3 Year Domestic & Commercial Warranty. Honda has a network of over 400 authorised dealers around Australia, so should you need parts, accessories, or maintenance done, you're not alone. You can work your Honda GX690 V-Twin engine as hard as you want. It's built to last.

Specifications

MODEL GX690
TYPE Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft
BORE & STROKE 2 / 78 x 72 mm
DISPLACEMENT 688 cm3
COMPRESSION RATIO 9.3:1
NET POWER 16.5 kW (22.1 HP) / 3 600 rpm
CONTINUOUS RATED POWER 11.5 kW (15.4 HP) / 3 000 rpm 13.0 kW (17.4 HP) / 3 600 rpm
MAXIMUM NET TORQUE 48.3 Nm / 4.93 kgfm / 2 500 rpm
IGNITION SYSTEM Digital CDI with variable ignition timing
STARTING SYSTEM Electric starter
FUEL CONSUMPTION AT RATED POWER 6.7 L/hr - 3 600 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Full-pressure
OIL CAPACITY 1.9l
FUEL CAPACITY n/a
DIMENSIONS 429 x 410 x 438 mm (T-Type)
DRY WEIGHT 44.6kg
RRP Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/
