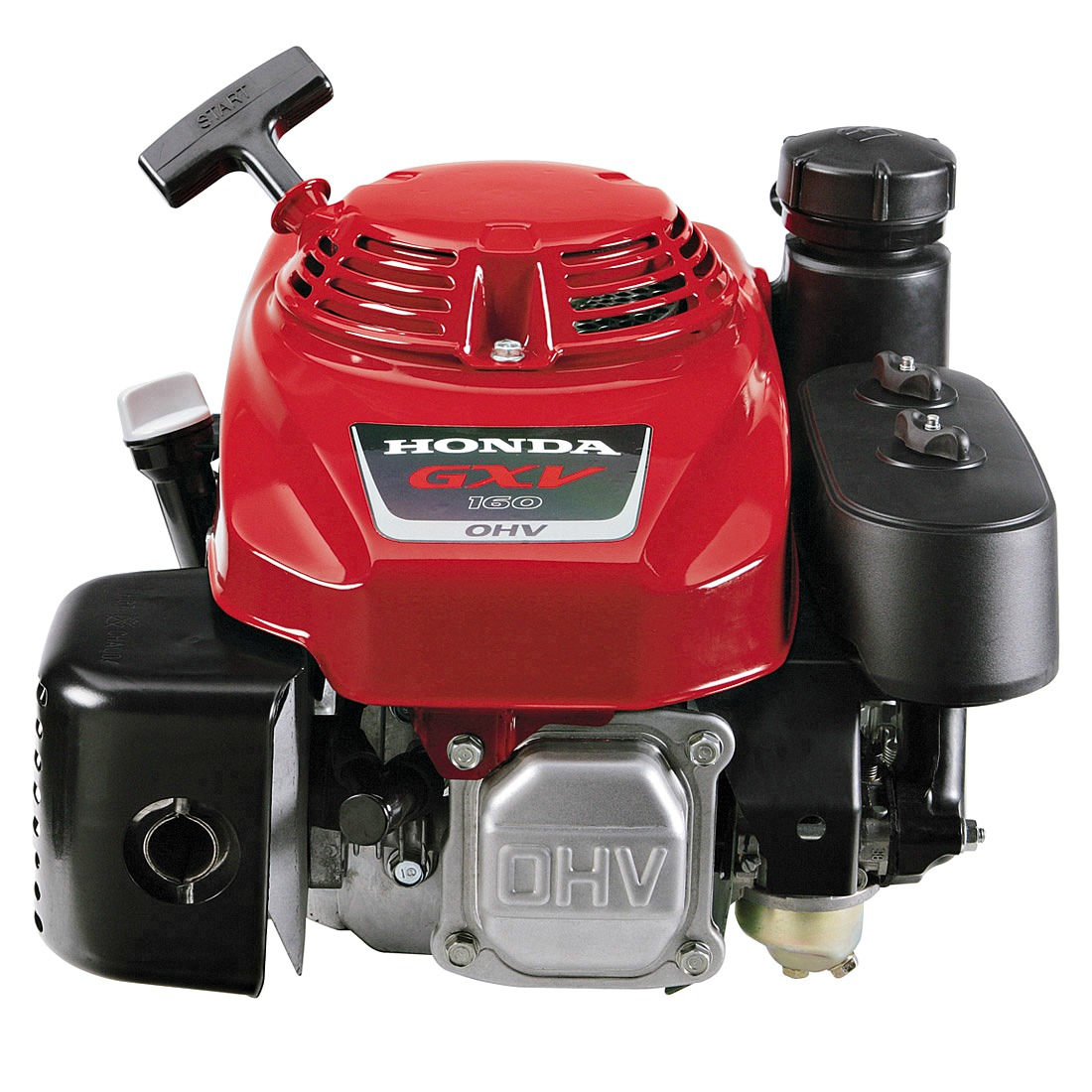

The Honda GXV160 is the engine that powers Honda lawn mowers so you know it'll work in practically any commercial lawn & garden equipment. It's also designed to power Forestry equipment, Construction/Industrial and Agricultural equipment.
The Honda GXV160's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket - and the environment. Precision engineered components result in lower vibration, and the Honda GXV160 engine features a Ball Bearing-supported crankshaft for greater stability.
Compared to its competitors, the Honda GXV160 engine is exceptionally quiet. This is in part due to its large capacity, multi-chamber exhaust system. Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system. And it emits less mechanical noise due to lightweight, noise-reducing materials.
Of course, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty. The GXV160's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered. With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.
MODEL | GXV160 |
---|---|
TYPE | 4-stroke, overhead valve, single-cylinder, Vertical Shaft |
BORE & STROKE | 68 x 45mm |
DISPLACEMENT | 163 cm3 |
COMPRESSION RATIO | 8.0:1 |
NET POWER | 3.2 Kw (4.3HP) at 3600 rpm |
CONTINUOUS RATED POWER | 2.0 kW (2.7HP) at 3000 rpm |
MAXIMUM NET TORQUE | 9.6 Nm at 2,500 rpm |
IGNITION SYSTEM | Transistorised magneto ignition |
STARTING SYSTEM | Recoil Starter |
COOLING SYSTEM | Forced-air |
PTO SHAFT ROTATION | Counter-clockwise (from P.T.O. side) |
FUEL CONSUMPTION AT RATED POWER | 1.1 L/h at 3,000 rpm |
RECOMMENDED FUEL | Unleaded |
LUBRICATION SYSTEM | Forced Splash |
RECOMMENDED OIL | 10W/30 API SG |
OIL CAPACITY | 0.65l |
FUEL TANK CAPACITY | 1.8l |
DIMENSIONS | 420 x 365 x 357mm |
DRY WEIGHT | 14.3kg |
RRP | Please contact your local Honda dealer for a great deal. http://dl.hondampe.com.au/ |
